Quick Latch 3-In-1 Hitch

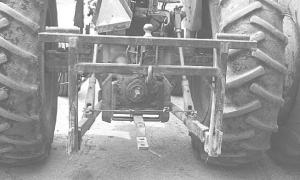

There's nothing on the market like the quicktach 3-in-1 hitch I built. I used scrap metal so it didn't cost me anything, but it saves me a good hour in switching from one hitch to another.
It consists of two 3-ft. uprights 50 in. apart and two crossmembers built of heavy-duty 2 by 4-in. tubing. The top crossmember is fitted with a detachable 2-in. dia. ball hitch, while the bottom crossmember secures to the 3-pt's top link. You can use the hitch to hook up to all 3-pt. mounted equipment, 5th wheel gooseneck trailers, or ball hitch trailers.
Takes only minutes to switch, and the design could be adapted to any tractor with a 3-pt. hitch. (John O. Johnson, R.R. 3, Osakis, Minn. 56360; ph 320 859-3514).
