Pasture Aerator Built From Water Tank
After seeing a farmer-built pasture aerator in FARM SHOW recently, Charles George decided to build one of his own to use on a 5-acre cow pasture.
"It doesn't tear up the ground like the 8-ft. field harrow I used before," notes the Graham, Wash., rancher. "It just punches holes in the ground so water can wash manu
..........![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book
Pasture Aerator Built From Water Tank TILLAGE EUIPMENT Miscellaneous 22-1-4 After seeing a farmer-built pasture aerator in FARM SHOW recently, Charles George decided to build one of his own to use on a 5-acre cow pasture.
"It doesn't tear up the ground like the 8-ft. field harrow I used before," notes the Graham, Wash., rancher. "It just punches holes in the ground so water can wash manure down them."

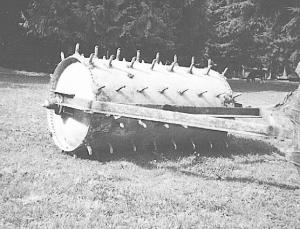

He started with a heavy-duty, 150-gal. well tank that's 6 ft. long and 3 ft. in dia. He welded spindles off a boat trailer in the center of each end of the tank to serve as stub shaft axles. He built an A-shaped tongue out of angle iron that bolts to the spindle hubs. The design allows the tongue to be easily re-moved so bearings can be serviced or re-placed quickly.
He fitted the tank with 11 in-line rows of eight 4-in. long spikes. The spikes were made from 8-in. long pieces of square stock. He simply cut each piece in half at a 45 degree angle to produce a pair of pointed spikes.
George estimates the tank weighs 1,800 lbs. when filled with water. The weight is enough for the spikes to penetrate the full 4 in. in most conditions.
He uses his Ferguson TO 30 tractor to pull the aerator at up to 5 mph.
"It works like a charm, allowing water and fertilizer to penetrate the soil and aerating roots," he says.
Out-of-pocket expense was $40, including square stock.
Contact: FARM SHOW Followup, Charles George, 7411 288th St. E, Graham, Wash. 98338 (ph 253 847-7204).
