Adjustible Welding Clamp Holds A Variety Of Objects Together
 ✖  |

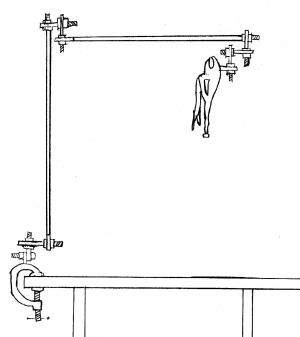

Wilbur Tiahrt, 45808 313th St., Meckling, S. Dak. 57044 ph 605 624-2458: "I made an adjustable welding clamp that works to hold a variety of objects together. A vice grip pliers holds one object in place like a third hand. It consists of a heavy duty 3 or 4-in. C clamp; two 3/8-in. dia., 18-in. long steel rods; eight 3/8 by 1-in. machine bolts with self-locking burrs; and eight pieces of 1-in. sq., 1/4-in. thick metal. The C clamp attaches to the welding table and is used to support the rods, which rotate around the bolts and can be adjusted at any angle - up, down, sideways, or backward. To move the object you simply grab the vice-grip.
I'm willing to build the welding clamp for $35 plus the price of a pair of vice grip pliers (postpaid). You can choose whatever size vice-grips you prefer."
