Latch Holds Truck End Where You Want It

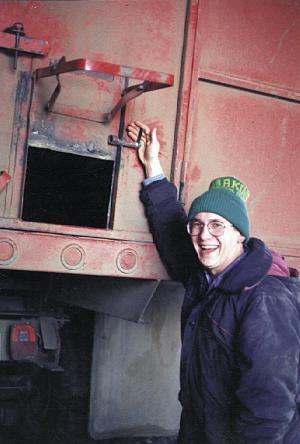

Jerry Bauer of Thorhild, Alberta, uses a homemade latch equipped with an eccentric to keep his truck's end gate in place wherever he wants it.
"It holds the door tightly in any position. I never have to worry about it falling down," says Bauer.
The latch consists of a threaded bolt that goes through a hol
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Latch Holds Truck End Where You Want It TRUCKS Accessories 23-3-10 Jerry Bauer of Thorhild, Alberta, uses a homemade latch equipped with an eccentric to keep his truck's end gate in place wherever he wants it.
"It holds the door tightly in any position. I never have to worry about it falling down," says Bauer.
The latch consists of a threaded bolt that goes through a hole drilled into a length of angle iron along one side of the door. The bolt is welded to one side of a 1/2-in. long piece of 1-in. dia. steel pipe. Because the bolt is welded to one side of the pipe, it acts as an eccentric, clamping down tight against the door when turned. He welded a short metal strap onto the other end of the bolt to serve as a handle.
A nut on each side of the angle iron stabilizes the latch.
Contact: FARM SHOW Followup, Jerry Bauer, Box 507, Thorhild, Alberta, Canada (ph 403 398-2322).
