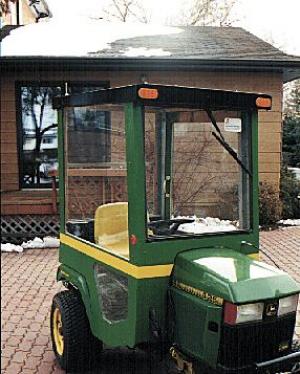

Home Built Cab For Deere 425 Lawn Tractor
fter inquiring about a factory cab for my Deere 425 lawn tractor, I decided I couldn't justify the $3,000 price tag.
So I built my own using a Deere brochure as a guideline. My home-built cab actually has 5 to 10 percent more window area than a factory job. I bought Plexiglas to use for the side panels, while th
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Home Built Cab For Deere 425 Lawn Tractor TRACTORS Cabs 23-3-33 fter inquiring about a factory cab for my Deere 425 lawn tractor, I decided I couldn't justify the $3,000 price tag.
So I built my own using a Deere brochure as a guideline. My home-built cab actually has 5 to 10 percent more window area than a factory job. I bought Plexiglas to use for the side panels, while the big front and rear windows are safety glass out of old storm doors.
The 30-in. wide cab is made of 3/4-in. plywood with galvanized metal to reinforce the inside corners. I lined the interior with Styrofoam and indoor/outdoor carpet. It's equipped with an AM-FM radio cassette and a front windshield wiper out of an old Honda.
The cab mounts on the tractor with six bolts through three holes I drilled in each running board. It can be mounted and dismounted in minutes.
It works as well as a factory-built cab and cost only $320 to build. (Earl Line, Box 39, Melita, Manitoba, Canada R0M 1L0; ph 204 522-8346)
