Long-Lasting, Industrial-Size Burn Barrels

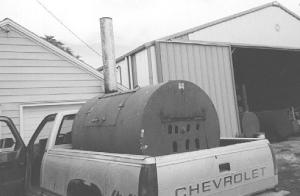

If you use a 55-gal. drum to burn trash, you know they don't last very long. You might want to check out the heavy-duty industrial-size burn barrels made by an Iowa farmer out of old fuel storage tanks.
"I've built 175 trash burners since I started making them in 1989," says Don Bartels, Lytton, Iowa. "They rang
..........![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book
Long-Lasting, Industrial-Size Burn Barrels MISCELLANEOUS EQUIPMENT Miscellaneous 23-6-6 If you use a 55-gal. drum to burn trash, you know they don't last very long. You might want to check out the heavy-duty industrial-size burn barrels made by an Iowa farmer out of old fuel storage tanks.
"I've built 175 trash burners since I started making them in 1989," says Don Bartels, Lytton, Iowa. "They range in size from 300 up to 2,000 gals., with walls typically 1/16 to 1/8 in. thick. They'll last eight years or longer depending on use.
"I use old fuel barrels that I get at farm auctions. I make sure the barrels are thoroughly cleaned out before cutting a clean-out door in one end and a loading door in one side. I put hinges on the cut-outs, then reattach them. I install 36 or 48-in. tall chimneys made out of 8-in. dia. steel elevator auger tubing with a piece of grating over the opening so big pieces of burning material don't float up and out the chimney. I cut a series of 2 to 4-in. long slits in the bottom of the barrels to let water drain out.
"You can make the access door big enough to burn large items like packing crates or pallets." Bartel's burners sell for $150 up to $300. He'll make plans available for $15 if there's interest.
Contact: FARM SHOW Followup, Don Bartels, 2442 Xavier Ave., Lytton, Iowa 50561 (ph 712 466-2450).
