Gentle Bean Handler Uses Combine Return Elevator

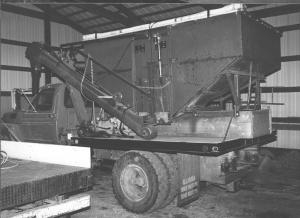

To avoid damage to bean seed, Sam Ellis, and his sons Roger and Bob, built this bulk hopper with a hydraulic-powered unloading conveyor.
They mounted an old gravity box on back of a flatbed. Then they fitted it with a return elevator off a combine. It's positioned so the lower end is just below the chute. The
..........![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book
Gentle Bean Handler Uses Combine Return Elevator PLANTERS Planters 23-6-37 To avoid damage to bean seed, Sam Ellis, and his sons Roger and Bob, built this bulk hopper with a hydraulic-powered unloading conveyor.
They mounted an old gravity box on back of a flatbed. Then they fitted it with a return elevator off a combine. It's positioned so the lower end is just below the chute. The elevator swings out to the side at a right angle, braced by a support arm mounted on a hinged bracket on the side of the box.

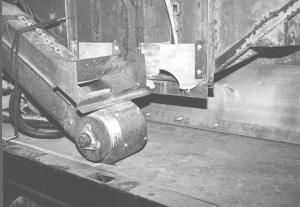

The elevator is powered by a hydraulic motor mounted on the flatbed. There's a hydraulic motor at the top of the elevator.
The men narrowed up the opening on the grain door so seed comes out slowly and evenly, further minimizing damage.
Contact: FARM SHOW Followup, Sam Ellis
, RR2, Box 72, Chrisman, Ill. 61924.
