Seed Tube Protector For Deere & Kinze Planters

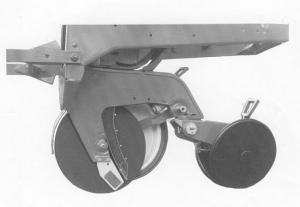

Seed Tube Protector For Deere & Kinze Planters PLANTERS Planters 24-1-37 The latest new add-on for row-crop planters is a Seed Tube Protector from R K Products, an Illinois company well-known for its repair and improvement kits for planters and no-till drills. Designed for Deere and Kinze planters, it consists of a 5/16-in. thick steel holder bracket that's held rigidly to the shank just ahead of the seed tube with 5/16-in. dia. solid steel rivets. The rivets eliminate problems with roll pins breaking or working their way out. The bracket is fitted with a "floating wear block". It floats in the holder bracket, maintaining a constant space between the opener discs under variable load conditions from the ground. It's made from a resin-based fiberglass and graphite-filled material. The graphite provides a low co-efficient of friction resulting in a wear life at least twice that of the original equipment. The block can be inverted for additional life. It's easily replaced by removing one opener disc. Contact: FARM SHOW Followup, R K Products, Inc., 3802 Jean Street, East Moline, Ill. 61244 (ph 800 580-6818 or 309 792-1927; fax 1924; Web site: www.rkproducts.com).

To read the rest of this story, download this issue below or click here to register with your account number.
