Tool Removes And Replaces Bearings Packer Wheels On Deere Platers
 ✖  |

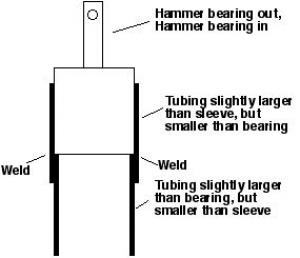

Donald Bunch, Aberdeen, Miss.: "Here's a tool I made to remove and replace bearings in the packer wheels on Deere planters. It consists of two pieces of pipe, one slightly larger than the bearing but smaller than the sleeve, and the other slightly larger than the sleeve. The smaller pipe slips inside the larger pipe and you weld it in place. When you slide the bearing sleeve into the end of the pipe, it catches on the smaller pipe and you can then hammer out the bearing, or hammer in a new one. Sure beats trying to do it in a vise."
Click here to download page story appeared in.
Click here to read entire issue
Tool Removes And Replaces Bearings Packer Wheels On Deere Platers FARM SHOP Tools 24-5-38 Donald Bunch, Aberdeen, Miss.: "Here's a tool I made to remove and replace bearings in the packer wheels on Deere planters. It consists of two pieces of pipe, one slightly larger than the bearing but smaller than the sleeve, and the other slightly larger than the sleeve. The smaller pipe slips inside the larger pipe and you weld it in place. When you slide the bearing sleeve into the end of the pipe, it catches on the smaller pipe and you can then hammer out the bearing, or hammer in a new one. Sure beats trying to do it in a vise."
