Electric Jack Turns Unloading Auger On And Off
 ✖  |

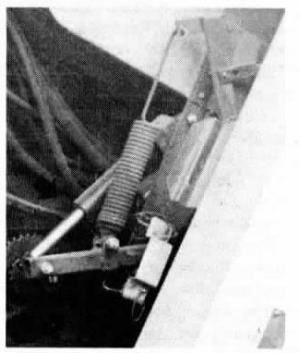

Dean Scheel, Dysart, Iowa, and Mike Grace, Elberon, Iowa, replaced the manual lever controlling the unloading auger on Scheel's 1977 M2 Gleaner combine with an electric screw jack so he can turn the auger on and off with the flip of a switch.
"Most controls on M2 Gleaners are electrically operated with toggle switches, but for some reason the unloading auger is controlled manually by a lever located under the seat in the cab. The lever is only 2 in. off the floor under the seat so you have to bend clear over to get at it. Deutz-Allis offers a hydraulic assist option for the lever but it costs more than $800. The screw jack, which runs off the battery, cost only $170. It tightens a heavy spring which engages a tightener on the auger's drive belt."
Grace made one bracket from 1 by 1-in. box tubing to connect the screw jack to the spring, and another bracket to support a safety interlock system. "The interlocking system ensures that the auger can't be turned on in the transport position, and that it can't be returned to transport position while it's running," explains Scheel.
Contact: FARM SHOW Followup, Mike Grace, RR 1, Elberon, Iowa 52225 (ph 319 444-2906).
Click here to download page story appeared in.
Click here to read entire issue
Electric jack turns unloading auger on and off COMBINES Accessories 13-5-6 Dean Scheel, Dysart, Iowa, and Mike Grace, Elberon, Iowa, replaced the manual lever controlling the unloading auger on Scheel's 1977 M2 Gleaner combine with an electric screw jack so he can turn the auger on and off with the flip of a switch.
"Most controls on M2 Gleaners are electrically operated with toggle switches, but for some reason the unloading auger is controlled manually by a lever located under the seat in the cab. The lever is only 2 in. off the floor under the seat so you have to bend clear over to get at it. Deutz-Allis offers a hydraulic assist option for the lever but it costs more than $800. The screw jack, which runs off the battery, cost only $170. It tightens a heavy spring which engages a tightener on the auger's drive belt."
Grace made one bracket from 1 by 1-in. box tubing to connect the screw jack to the spring, and another bracket to support a safety interlock system. "The interlocking system ensures that the auger can't be turned on in the transport position, and that it can't be returned to transport position while it's running," explains Scheel.
Contact: FARM SHOW Followup, Mike Grace, RR 1, Elberon, Iowa 52225 (ph 319 444-2906).
