First-Of-Its-Kind Fence Building Machine
Driving home from work one day, Tim Herrmann saw his 76-year-old uncle driving steel fence posts into the ground. The sight prompted him to start working on an easier way to drive posts.
His patent pending "Theilman Fence Master" is a computer-controlled, hydraulic-operated machine that automatically d
..........![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book
First-Of-Its-Kind Fence Building Machine FENCING Miscellaneous Driving home from work one day Tim Herrmann saw his 76-year-old uncle driving steel fence posts into the ground The sight prompted him to start working on an easier way to drive posts

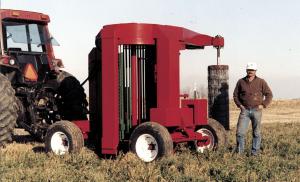

His patent pending Theilman Fence Master is a computer-controlled hydraulic-operated machine that automatically drives steel fence posts It s available either as a pto-driven or self-propelled model and can carry a magazine of steel T-posts or plain pipe posts
It lets one person put up a mile of fence posts in an 8-hour workday and the fence will be perfectly straight or if you want naturally curved says Herrmann who has built other models to handle both fiberglass and wood posts

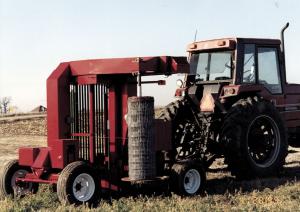

The machine is controlled from the tractor cab by push button controls Posts load into a rotating magazine that holds up to 60 posts To drive a post you simply push a button The unit grabs one post at a time from the magazine and drives it into the ground Fence wire is unrolled from spools at the back of the unit as you drive along
A laser beam alignment system on the Fence Master makes it easy to put posts in a perfectly straight line You can install crooked or curved fence lines by turning off the laser alignment system and using a remote manual post positioning button
This machine will drive a post about every 60 seconds or less says Herrmann It has a self-leveling feature so it ll always drive posts straight even on side hills One person can operate it but it s more efficient with two operators û one to run the machine and the other to follow behind to tie the fence onto the posts There are two wire unrolling spools one on each side of the machine
If the operator is out of position the machine will not drive the post giving the operator a chance to reposition the machine It will also stop itself if the post hits a rock while it s being driven in The undamaged post can then be driven in elsewhere
The self-propelled version has all wheel drive and front and rear axle steering with a lockout for just front wheel steering The front and rear axle steering mode works great for repairing fences or getting into tight spots
I ve also developed two other models One is designed to put in fiberglass posts and weighs just 700 lbs so it can be mounted in the back of any 1/2-ton pickup The driver operates the post driver and single strand fence unroller right from the pickup cab and can put in a post every 45 seconds or less The magazine holds up to 120 posts This unit doesn t have a laser alignment system The other model is much more expensive and is designed for contractors It s available either as a self-propelled or pull-type unit and stands 11 ft high and weighs about 8 000 lbs It s capable of driving in wood posts as well as all other kinds of posts It pre-drills a hole that s slightly smaller than the wood post and then drives the post into it It also works great for setting round or square poles for building sheds
Inserts can be bolted into the magazine on any of the machines allowing you to switch between driving in fiberglass posts T-posts or pipe posts For example you might want to drive in five fiberglass posts then a steel post then five more fiberglass posts etc says Herrmann
Herrmann says he s looking to license capitalize or custom make individual machines
Contact: FARM SHOW Followup Tim Herrmann RR 1 Box 135C Theilman Minn 55945 ph 507 534-2738
