Homemade Portable Wood Working Table
 ✖  |
"We also came up with our own portable wood working table that makes it easy to clamp and glue together pieces of wood. The working area is 4 ft. off the floor which is much easier than working on the floor. Another advantage is that the clamps are held firmly in place by the table.

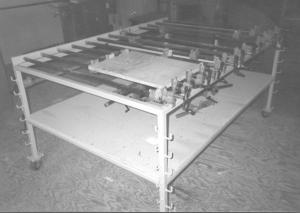

"The metal table is 4 ft. wide and 6 ft. long and mounts on four caster wheels. The 4-ft. long clamps on top of the table are spaced about 8 in. apart and fit through holes drilled into one side of the table. The handle end of each clamp has a hole drilled into it, allowing the clamps to be fitted over small metal tabs welded onto the opposite side of the table.
"A 3/4-in. plywood shelf below the top of the table is used to store extra clamps."
Click here to download page story appeared in.
Click here to read entire issue
Homemade Portable Wood Working Table FARM SHOP Miscellaneous 25-2-38 "We also came up with our own portable wood working table that makes it easy to clamp and glue together pieces of wood. The working area is 4 ft. off the floor which is much easier than working on the floor. Another advantage is that the clamps are held firmly in place by the table.
"The metal table is 4 ft. wide and 6 ft. long and mounts on four caster wheels. The 4-ft. long clamps on top of the table are spaced about 8 in. apart and fit through holes drilled into one side of the table. The handle end of each clamp has a hole drilled into it, allowing the clamps to be fitted over small metal tabs welded onto the opposite side of the table.
"A 3/4-in. plywood shelf below the top of the table is used to store extra clamps."
