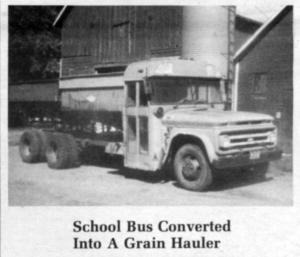

School Bus Converted Into A Grain Hauler
 ✖  |
"Works as well as any conventional grain truck and it's a lot cheaper," says Iowa farmer Ben Greene, of Webb, who built a 350 bu. grain hauler from an old school bus and two used gravity boxes. The rig cost him only $400 - $300 for the bus and $100 for the wagons.
Greene started with a 1964 48-passenger Chevrolet bus equipped with a 292 engine. He stripped the bus to the frame from the driver's seat back and added a tag axle. He mounted the two gravity boxes on the 20 ft. long frame and left the rest of the bus unchanged.
Greene replaced wooden bolsters on the gravity wagons with angle iron so the boxes would slide right onto the bus frame. They're secured to the frame with chains. Both gravity boxes dump to the same side of the bus.
In the future, Greene hopes to also use the bus as a livestock hauler. "I have a 40-ft., double-deck livestock trailer that I plan to cut down to 22 ft. long so it will fit on the frame in place of the gravity boxes. The rig should be able to haul 100 market-size hogs," he notes.
Contact: FARM SHOW Followup, Ben Greene, Webb, Iowa 51366.
Click here to download page story appeared in.
Click here to read entire issue
School bus converted into a grain hauler SCHOOLBUS CONVERSIONS Schoolbus Conversions 10-6-6 "Works as well as any conventional grain truck and it's a lot cheaper," says Iowa farmer Ben Greene, of Webb, who built a 350 bu. grain hauler from an old school bus and two used gravity boxes. The rig cost him only $400 ù $300 for the bus and $100 for the wagons.
Greene started with a 1964 48-passenger Chevrolet bus equipped with a 292 engine. He stripped the bus to the frame from the driver's seat back and added a tag axle. He mounted the two gravity boxes on the 20 ft. long frame and left the rest of the bus unchanged.
Greene replaced wooden bolsters on the gravity wagons with angle iron so the boxes would slide right onto the bus frame. They're secured to the frame with chains. Both gravity boxes dump to the same side of the bus.
In the future, Greene hopes to also use the bus as a livestock hauler. "I have a 40-ft., double-deck livestock trailer that I plan to cut down to 22 ft. long so it will fit on the frame in place of the gravity boxes. The rig should be able to haul 100 market-size hogs," he notes.
Contact: FARM SHOW Followup, Ben Greene, Webb, Iowa 51366.
