Blade On Pickup Plow Raised And Lowered By Rear Dump Bed
 ✖  |

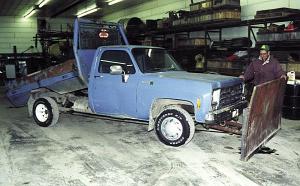

The blade on this home-built pickup plow is raised and lowered by raising or lowering the rear dump bed (also home-built). A cable runs from the front of the Chevy pickup, through a couple pulleys and up to the front of the dump box. When the box is raised, the blade is lowered. When the box is set back down, the blade is lifted back up. The blade mounts on a pusher frame made from steel pipe which hinges under the truck trame. (Marshall Litchfield, 15340 N. 700th Rd, Macomb, Ill. 61455 ph 209 254-3481)
