Post Auger Storage Unit
 ✖  |

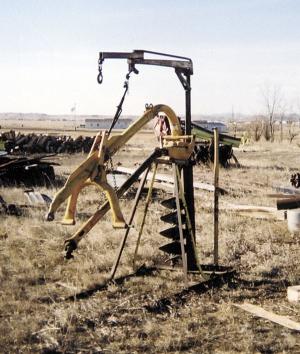

My post hole auger storage unit provides a simple way to keep a 3-pt. mounted E-Z post hole digger in place for easy hook-up. The unit's base is made from two 6 1/2-ft. lengths of sq. tubing spaced 32 in. apart, with two 32-in. lengths of sq. tubing welded between them. A 7-ft. 2-in. high length of tubing is welded upright at the center of the 32-in. piece. A 42-in. length of tubing is welded at a right angle to the top of the upright and supports a hook with a turnbuckle attached to it.
To release the digger from the tractor, I just back up the post hole digger under and set the back end of it on an 18-in. long "shelf". Then I hook up the turnbuckle to the digger and tighten it to hold the unit in place. (Henry E. Berry, 22422 150th Ave., Box Elder, S. Dak. 57719 ph 605 923-5649)
