Winch-Powered Trailer Tongue
Do you ever get tired of cranking on tongue jacks when hooking and unhooking trailers?
Clarence Peterson has a large flatbed trailer that he often has to take off several times a day. Cranking the tongue up and down numerous times is hard work, Peterson says.
"I mounted a 12-volt winch (bought from Har
..........![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book
Winch-Powered Trailer Tongue WAGONS/TRAILERS Miscellaneous 30-5-33 Do you ever get tired of cranking on tongue jacks when hooking and unhooking trailers?
Clarence Peterson has a large flatbed trailer that he often has to take off several times a day. Cranking the tongue up and down numerous times is hard work, Peterson says.

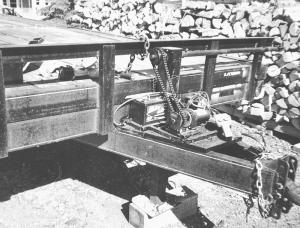

"I mounted a 12-volt winch (bought from Harbor Freight at 800-444-3353) with power up and power down, plus a freewheeling gear. I removed the winch cable and replaced it with a sprocket and I also put a sprocket on the shaft of the jack. The gear reduction was just right. I installed a battery to operate the winch. It's charged by the truck batteries. In case of some kind of failure, I can pull the release on the winch and crank it by hand. I take off the crank when using the power winch. It works great for me."
Contact: FARM SHOW Followup, Clarence Peterson, 1511 Lake Shore Dr., Menasha, Wis. 54952 (ph 920 733-2741).
