Add-On Dual PTO For Stationary Engines

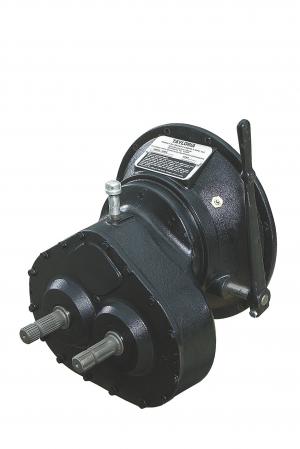

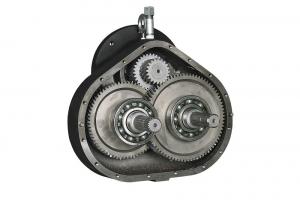

Add-On Dual PTO For Stationary Engines ENGINES Engines 30-6-19 Why settle for either 540 or 1,000 rpm pto shafts on stationary engines when you can have both? Heavy-duty Tayloria dual output gearboxes are available from Beiler Engine & Manufacturing. "Our first prototype was installed in the fall of 2003, and it's still working," says Jesse Beiler. "Many tractors have the option of the two speeds. This gearbox lets stationary engines have that option, too. Our customers use them on both mobile and stationary power sources for use with irrigation pumps, manure pumps, silage blowers and many other uses." Beiler says the dual output unit is priced at $391 and is rated for up to 175 hp at four engine speeds - 1,800, 2,150, 2,400 and 2,600 rpm's. The cast iron clutch housing is available in sizes no. 4, no. 3 and no. 2. He says the unit is simple to install and fits most SA standard diesel engines. The unit is available with 11 1/2-in. single or 11 1/2-in. double plate mechanical clutches. Beiler says they also offer a single output unit that's rated at up to 250 hp. It has only one set of gears and can be run at either 1,000 or 540 rpm's, depending on the needs. Contact: FARM SHOW Followup, Beiler Engine & Mfg., LLC, 1622 Georgetown Rd., Christiana, Penn. 17509 (ph 717 529-6595).

To read the rest of this story, download this issue below or click here to register with your account number.
