U-Joint Puller For PTO Shafts

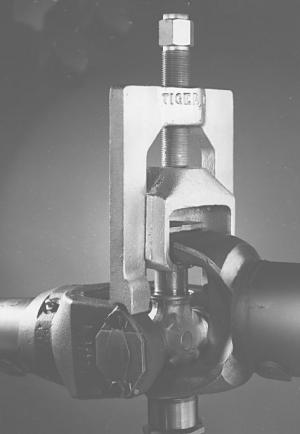

U-Joint Puller For PTO Shafts FARM SHOP Repairs 20-1-30 This new U-joint puller for pto driveshafts lets you remove bearing cups quickly and easily without damaging the driveshaft, yokes, cups, or bearings, says Tiger Tool International, Inc., Sumas, Wash. The "Tiger" U-joint puller is equipped with a threaded bolt on top and a pair of steel "legs" that mount on the driveline or on the U-joint cross. To remove bearing cups (even those that are rusted), slip the U-joint puller over the yoke and turn the bolt to press the cup out (you can catch the ejected bearing cup with your free hand). Repeat the process on the remaining three sides of the yoke. The puller is available in three models: Mark I to fit driveline series 1500 - 1800 commonly found on big trucks; Mark II for 1500 and under series drivelines such as those on intermediate trucks; and Mark III for cars and pickups. The Mark 1 model sells for $380, Mark 2 for $195, and Mark III for $125. Contact: FARM SHOW Followup, Tiger Tool International, Inc., 377 West 2nd St., Sumas, Wash. 98295 (ph 800 661 4661; fax 604 859-3977).
