"Roofed" Round Bale Feeder

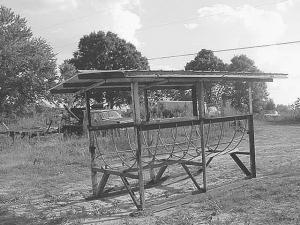

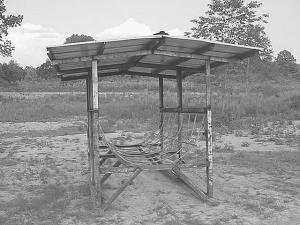

Wade Hearn didn't like the daily chore of feeding his goats. "My off-farm job keeps me working into the night several days a week," says the Blountsville, Alabama, man. So he built a portable round bale feeder that's covered by a corrugated sheet metal roof.
The metal feeder is designed to hold two round bal
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
"Roofed" Round Bale Feeder LIVESTOCK Feeding Equipment 32-1-35 Wade Hearn didn't like the daily chore of feeding his goats. "My off-farm job keeps me working into the night several days a week," says the Blountsville, Alabama, man. So he built a portable round bale feeder that's covered by a corrugated sheet metal roof.
The metal feeder is designed to hold two round bales. It measures 6 ft. wide by 10 ft. long and has a 10 by 12-ft. roof.
"It supplies enough feed for several weeks at a time," says Hearn. "Also, it keeps the hay dry as well as the goats, and it reduces hay loss to a minimum. "Goats tend to do a lot better if their hay is kept dry. They'll go hungry before they'll go out in the rain."
The frame is made from 3-in. angle iron and supports a bale rack made from 1/2-in. dia. galvanized pipe. The rack is welded to both sides of the frame as well as to a subframe at the bottom. A pair of metal runners with wooden 4 by 6's under them make it easy to push or pull the feeder around.
"I bent the rack by rolling the galvanized pipe around a tractor tire," notes Hearn.
Contact: FARM SHOW Followup, Wade Hearn, 1191 Thrasher Road, Altoona, Alabama 35031 (ph 205 589-8398; dodge wade@yahoo.com).
