Tractor Scoop Finger Extensions
Quick-attach finger extensions for tractor scoops help Maurice Leighton, Placerville, Calif., use his tractor to transport heavy loads.
Leighton wanted the ability to lift 1,500-lb. loads safely and securely, but he knew that other times he wouldn't need or want forks on his bucket.
"I designed, construct
..........![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book
Tractor Scoop Finger Extensions TRACTORS Loaders 32-4-10 Quick-attach finger extensions for tractor scoops help Maurice Leighton, Placerville, Calif., use his tractor to transport heavy loads.
Leighton wanted the ability to lift 1,500-lb. loads safely and securely, but he knew that other times he wouldn't need or want forks on his bucket.

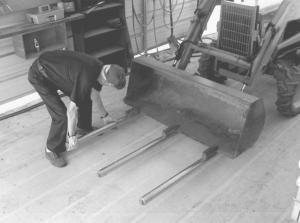

"I designed, constructed and regularly use three 4-ft. removable fingers on the tractor scoop, and really like the convenience and security it affords me," he says. "They're made from used 2 3/4 by 48-in cold rolled pipes, and I welded iron blocks on the end of the fingers for quick attachment to the scoop's fingers, in a position allowing them to easily slide under a standard pallet."

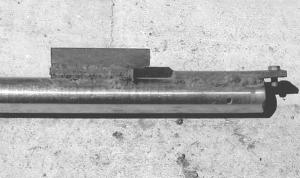

Leighton used blocks on the top and bottom of the scoop lip for anchoring the fingers. The top ones are 1 1/2-in. sq. by 6 in. and the bottom ones are big enough to drop a pin through. All are made from scrap iron.
Contact: FARM SHOW Followup, Maurice R. Leighton, 6560 Lindberg Ave., Placerville, Calif. 95667 (ph 530 626-0965).
