"Gas Feed And Filter" Keeps Fuel Flowing

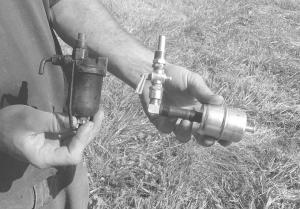

"Gas Feed And Filter" Keeps Fuel Flowing TRACTORS Accessories 32-6-38 Terry Young had a problem with loose rust settling at the bottom of the gas tank on his International Harvester 706 tractor, causing the fuel line to plug up. The Coffeen, Ill., farmer found a simple way to solve the problem. He added a short upright length of 3/8-in. dia. tubing inside the tank to raise the level of the gas intake about 1 in. above the bottom. That way, rust or other debris stays at the bottom of the tank. He also replaced the original sediment bulb with an in-line filter that's easy to replace. C. F. Marley, Nokomis, Ill., used the same idea on his IH tractor (pictured) but added a brass shut-off valve that makes filter replacement easy. Contact: FARM SHOW Followup, Terry Young, 73 Young Lane, Coffeen, Ill. 62017 (ph 217 534-2456).

To read the rest of this story, download this issue below or click here to register with your account number.
