Self-Feeding Corral Panels With Moveable Headgate
Robert Friesen, Crooked Creek, Alberta, came up with a way to self-feed round bales between two rows of free-standing, 30-ft. long steel panels spaced 20 ft. apart.
The panels are built out of 2 3/8-in. dia. oilfield tubing and are held upright by a series of 3/4-in. dia. steel stakes, which are driven into the
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Self-Feeding Corral Panels With Moveable Headgate LIVESTOCK Handling 28-2-10 Robert Friesen, Crooked Creek, Alberta, came up with a way to self-feed round bales between two rows of free-standing, 30-ft. long steel panels spaced 20 ft. apart.

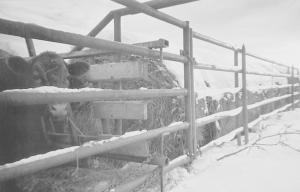

The panels are built out of 2 3/8-in. dia. oilfield tubing and are held upright by a series of 3/4-in. dia. steel stakes, which are driven into the ground to keep cattle from pushing the panels around. Between the two rows of panels is a 20-ft. wide moveable headgate. A length of chain at each end of the headgate allows cattle to push the gate into the bales.
The main body of the headgate consists of a series of slanted metal bars. The top part of the headgate consists of a length of 2 by 4 sq. tubing with a vertical steel pin at each end to keep the gate from moving sideways. The bottom part has a moveable apron made from a pair of 2 by 6's. The apron is U-bolted onto the headgate, allowing it to be adjusted up or down in order to reduce waste.
"It's an easy way to feed a few cattle without having to start up my tractor every day," says Friesen.
Contact: FARM SHOW Followup, Robert Friesen, Rt. 1, Crooked Creek, Alberta, Canada T0H 0Y0 (ph 780 957-2332).
