Powerful Hydraulic Shear Cuts Railroad Ties
Railroad ties are notoriously difficult to cut up so when Art Linsenmeyer was offered a free stockpile of them, he knew he'd have to get creative in order to find a use for them.
  "They tore out a railway line near me and I ended up with about 5,000 ties," he says. "There are some good ones that I'm able to sell but I decided to use the rest for firewood in my shop furnace. Since ties would ruin a chain saw or buzz saw blade, I started looking at another way to cut them up."

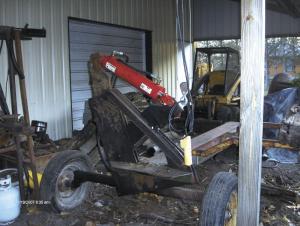

  The Wymore, Neb. man came up with a powerful hydraulic shear that slices through them like butter.
  "So far, I've cut between 500 and 600 ties, each into five pieces," he explains.
  Linsenmeyer's shear uses a 4-in. dia. by 24-in. long 3,000 psi cylinder and a Chevette engine power plant, hooked onto a 10 gal. per minute hydraulic pump.
  "The bed of the shear is an 8-ft. piece of 8 by 8-in. H-beam, and the knife's located between two 1/2-in. plates that are roughly 12 in. wide. These plates support the knife and the cylinder. They're cut in such a way that they keep the tie from slipping out as the knife comes down," he says. "The knife itself is a 3-ft. section of 1 by 8-in steel, sharpened on one side. It does stand up quite well but the first couple knives that I tried weren't thick enough and had a tendency to bow."
  The unit has a rack on one side, onto which Linsenmeyer loads 10 to 15 ties at a time with a skid steer loader. He then rolls them one at a time onto the H-beam bed so he can push them into the knife.
  He mounted the rig on 2 wheels and put a hitch on one end, so it's portable.
  "I guess I've got almost $300 invested, but I figure the firewood should last me about 20 years," he says. "The unit has a cycle time of about 15 seconds so I can make about 4 cuts a minute."
  Contact: FARM SHOW Followup, Art Linsenmeyer, 907 East G., Wymore, Neb. 68466 (ph 402 645-3743, cell 402 228-6089; al54323@windstream.net).
