Drawbar Reinforcement For Deere 8000-8030 Tractors
Large grain carts, liquid manure tanks, and beet lifters can be hard on tractor drawbars, even on the biggest tractors. This new drawbar reinforcement bracket for Deere 8000 series tractors is designed to take care of the problem.
K&M"s "Drawbar Reinforcement" fits Deere 8000 - 8030 series wheel tractors equippe
..........![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book
Drawbar Reinforcement For Deere 8000-8030 Tractors TRACTORS Accessories 34-2-30 Large grain carts, liquid manure tanks, and beet lifters can be hard on tractor drawbars, even on the biggest tractors. This new drawbar reinforcement bracket for Deere 8000 series tractors is designed to take care of the problem.
K&M"s "Drawbar Reinforcement" fits Deere 8000 - 8030 series wheel tractors equipped with Cat. 3 (2 by 3-in.) standard drawbars.

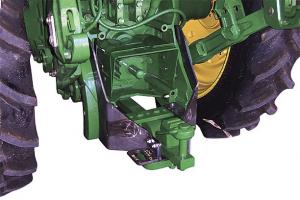

The system consists of a pair of side plates and a support bracket for them. You remove the pto shield and install the side plates using four provided bolts. Then bolt the support bracket to the side plates using four 5/8 by 2-in. bolts, lock washers and nuts. A -in. thick spacer plate goes between the support bracket and the drawbar.
Fits John Deere 8000, 8010, 8020 and 8030 series tractors. Call with tractor model for specific part number. Sells for $317 plus S&H. Does not fit Cat. 4 (2 x 4-in.) heavy duty drawbars.
Contact: FARM SHOW Followup, K&M Mfg., 308 NW 2nd St., P.O. Box 409, Renville, Minn. 56284 (ph 800 328-1752; Kevin@tractorseats.com; www.tractorseats.com).
