Hole Cutting Method
 ✖  |
"Here's a little hint for drilling holes in sheet metal or anywhere that large hole saws tend to "drift" away from the location you're trying to drill (like in a piece of sheet metal). For example, I recently installed a B&W brand turnover ball hitch in my pickup bed, and used this trick to make the hole-drilling easier.

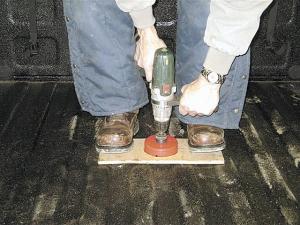

"It's pretty important that you get the hole exactly in the right place or the underside attachment brackets won't line up. Although there's a 1/4-in. pilot hole in the center, the hole saw still wanted to move around. So I used a simple piece of 1/2-in. plywood to solve the problem. It needs to be large enough to stand on to keep it in place. I use the weight of my body, but you can clamp it down too, if you're able to.
"First, I drilled the size hole I needed in the plywood. This allowed me to see the metal through the hole. When you start to drill into the metal, the board acts as a guide for the drill bit, holding it perfectly in place.
"I also used this method to drill a hole in my rubber bed liner mat, which I installed in the truck box when I was finished installing the ball hitch.
"My brother Paul thought of this little hint. He reads FARM SHOW, so I have to give him the credit or I'll hear about it."
Click here to download page story appeared in.
Click here to read entire issue
Hole Cutting Method FARM SHOP Handy Hints 34-2-37 "Here's a little hint for drilling holes in sheet metal or anywhere that large hole saws tend to "drift" away from the location you're trying to drill (like in a piece of sheet metal). For example, I recently installed a B&W brand turnover ball hitch in my pickup bed, and used this trick to make the hole-drilling easier.
"It's pretty important that you get the hole exactly in the right place or the underside attachment brackets won't line up. Although there's a 1/4-in. pilot hole in the center, the hole saw still wanted to move around. So I used a simple piece of 1/2-in. plywood to solve the problem. It needs to be large enough to stand on to keep it in place. I use the weight of my body, but you can clamp it down too, if you're able to.
"First, I drilled the size hole I needed in the plywood. This allowed me to see the metal through the hole. When you start to drill into the metal, the board acts as a guide for the drill bit, holding it perfectly in place.
"I also used this method to drill a hole in my rubber bed liner mat, which I installed in the truck box when I was finished installing the ball hitch.
"My brother Paul thought of this little hint. He reads FARM SHOW, so I have to give him the credit or I'll hear about it."
