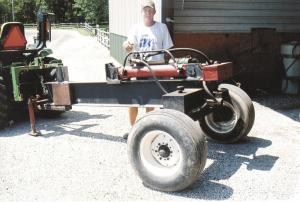

Salvaged Bridge Made Into Bridge Beam Log Splitter
I used an 8-ft. long salvaged bridge beam and a 4-in. hydraulic cylinder to build this heavy duty log splitter that's mounted on a 2-wheel trailer. I pull it behind my compact utility tractor or pickup.
Power is provided by a Kohler 16 hp engine that operates a 3,000 psi pump. The cylinder has a 2-ft. stroke
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Salvaged Bridge Made Into Bridge Beam Log Splitter WOODLOT EQUIPMENT Miscellaneous I used an 8-ft long salvaged bridge beam and a 4-in hydraulic cylinder to build this heavy duty log splitter that s mounted on a 2-wheel trailer I pull it behind my compact utility tractor or pickup Power is provided by a Kohler 16 hp engine that operates a 3 000 psi pump The cylinder has a 2-ft stroke so it ll handle the biggest logs I haven t found anything that it won t split I used steel tubing to build the trailer s axles and bought new spindles and welded them in It rides on 11 5 by 15 implement tires A toolbox on back is used to store wedges I already had the engine and most of the steel The only items I bought were the pump and hydraulic hoses I don t know exactly how much I spent to build it but I know I saved a lot of money Larry Power 16253 Snyder Rd Petersburg Ill 61675 ph 217 632-3179
