Pickup Turned Into Dump Truck

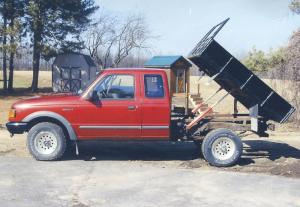

"It looks like a Ranger on steroids and turns a lot of heads," says Danny Goodman who, along with his son Logan, converted a 1993 Ford Ranger 3/4-ton, extended cab pickup into a low-cost dump truck.
They unbolted the pickup bed and replaced it with a home-built dump box, which is hydraulically raised a
.......... You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Pickup Turned Into Dump Truck PICKUPS Miscellaneous It looks like a Ranger on steroids and turns a lot of heads says Danny Goodman who along with his son Logan converted a 1993 Ford Ranger 3/4-ton extended cab pickup into a low-cost dump truck
They unbolted the pickup bed and replaced it with a home-built dump box which is hydraulically raised and lowered using a control box in the cab The dump box measures 5 ft wide by 6 ft long and has 17-in high sides It has a capacity of about 1 000 lbs A headache rack mounts on front of the bed and a tailgate slips onto the back
It works great for hauling and dumping firewood gravel and topsoil says Danny We painted the box black so it really stands out in contrast to the pickup s red color
The pickup originally belonged to Logan However it had sat in their yard for a long time and Danny wondered what to do with it I ended up buying the pickup from Logan and then got the idea to convert it into a dump truck The transmission was bad so we installed a new one
They used 2-in sq tubing to build the box frame and 3/16-in sheet metal to build the floor and sides The self-contained electric/hydraulic system is off a cargo van and was originally used to operate a lift gate A pair of 1 1/2-in dia 17-in hydraulic cylinders do the lifting
The hydraulic pump and reservoir are located in the back seat and are inside a box that doubles as a toolbox says Danny
There s a cutout in the front side of the box so I can look through the cab s rear window when backing up
Danny says he spent about $1 000 to build the dump box I ve been asked to build for others However I don t have the time he notes
Contact: FARM SHOW Followup Danny Goodman 201 County Route 24 Malone N Y 12953 ph 518 483-7204; dgoodman@twc rr com
