"Root Piler" Machine Makes A Comeback

Root Piler Machine Makes A Comeback MISCELLANEOUS EQUIPMENT Miscellaneous A root piler that William W Janzen invented in 1984 is making a comeback because there’s a new rush to clear farmland in northern Alberta Canada
    Janzen remembers picking roots by hand when he homesteaded in 1964 He knew there had to be a better way so he eventually created the root piler He used it to do custom work piling roots for other landowners He made a second machine in 1986 which is still in use
    “With all the land being cleared this spring I could see there was more demand for these machines ” Janzen says More than 800 quarters will be sold and cleared in MacKenzie County in the next few years
    Janzen’s friend Jake Driedger has a welding shop and has started building the root pilers with slight modifications of Janzen’s original design
    “We’ve made it easier to take off parts and the bearings are easier to change I added a hydraswing on the hitch for transporting on the road ” Janzen says

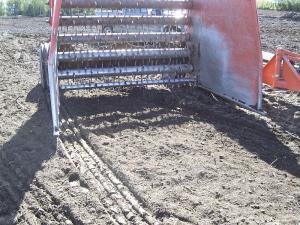

    The piler looks similar to a round baler It has 6 horizontal rollers or beaters running at 400 rpm’s that are 4 in apart with three rows of 3 to 4-in teeth that spiral from the outside to the middle The rollers kick the roots forward and the dirt falls back behind the rollers With the heavy-duty frame built of 3/8-in wall 8 by 8-in square tubing the piler moves everything from 2-in dia roots to 12-in dia logs up to 8 ft long

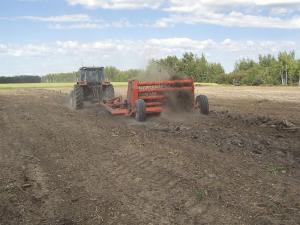

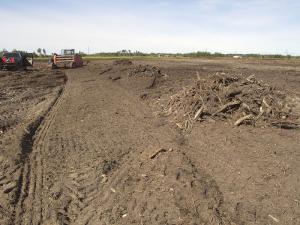

    With shields on the side the piler takes an 8-ft swath The operator drives slowly as the piler rolls roots ahead of it until the pile reaches 3 to 4 ft high and can’t roll any more Then he backs up drives around the pile and continues A half-mile swath typically takes 1 1/2 to 2 hours and leaves about 20 piles Once piled the roots can be dried and burned
    A 90 hp tractor is adequate to pull the piler Janzen says
    The root pilers sell for about $40 000
    Contact: FARM SHOW Followup William W Janzen Box 234 La Crete Alta TOH 2HO Canada ph 780 928-2500
