Corn Head "Smiles" At Dips In Field
Kevin Markt can make your 12-row corn head frown as it goes over ridges and smile in the dips. His Split-Flex modified corn head will make you smile either way. That’s especially true if you’ve been stuck with an 8-row head on a 12-row capacity combine because of uneven fields. Markt made his first Split-Flex out of necessity. Now he makes them to sell.
“In 2008 my neighbor asked me to combine his corn planted with a 12-row planter,” recalls Markt. “I bought a used head for my combine and discovered I had to do a lot of partial runs to harvest his terraces, picking up 8 rows here and four there with the rigid head.”

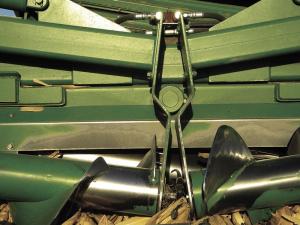

After harvest, Markt took his corn head to the shop. He cut it in two and anchored the two sides to a center pivot point. This allowed them to flex 18 in. up and 15 in. down from level. The challenge was to fabricate a mount that kept row spacing at 30 in. regardless of the amount of flex.
With the addition of a control panel and ground sensors from Headsight, Inc., Markt was ready for the field in 2009. The ground sensors adjusted each wing of the header as needed, whether in a dip or straddling a ridge.
“My neighbors sat back and watched as I built it, telling me it wouldn’t work,” he said. “After they rode along in the combine, they wanted me to build one for them. I built 10 of them over that next winter.”
Markt quickly sold the first unit and made changes in the next round that let him gain even more flexibility. This time he modified a new 12-row, 30-in. header.

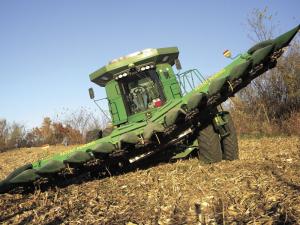

In its current version, the Split-Flex modified header ends can flex up or down 23 1/4 in. from level for a total of 32 degrees movement.
“It takes a lot of cutting, welding and fitting pieces together, but I and a helper can modify a corn head in about a week,” says Markt. “When we are done, it’s ready to go to the field.”
Most of Markt’s customers are in his general area, as they either need to bring their corn head for him to work on or order one from the local Deere dealer. So far, he has only worked on Deere 612C or 1293 12-row/30-in. heads.

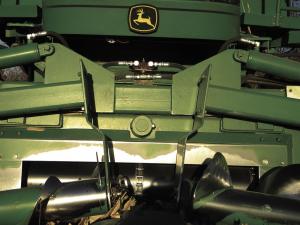

The completed unit includes five auto-height sensors, an InSight header control box and the Split-Flex kit. The kit includes hydraulic cylinders, mounts, wear plate, pivot pin, telescoping drive shafts and heavy-duty U-joints.
Markt asks for 20 percent down when starting a job with the rest due at pick up. Currently a modification runs $22,500.
Markt has no plans at this time to sell stand-alone kits or manuals for DIY installation. “Guys have asked, but we aren’t there yet,” he says. “You have to know exactly where to cut. If you don’t, it can be an expensive mistake.”
Contact: FARM SHOW Followup, Innovative Ag Technologies, 29938 Raintree Dr., Oregon, Mo. 64473 (ph 816 390-7840; toll free 888 816-8138; www.split-flex.com).
