Traveling Toolbox Rolls To End Of Pickup

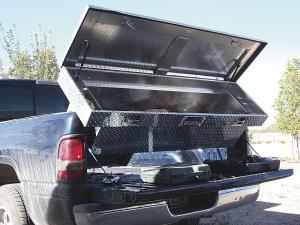

“The tool I needed always seemed to be on the other side of the toolbox. So I decided to bring the tools to the back of the truck,” says Raul Tijerina about his traveling toolbox. At 5 ft. 6 in., the Arizona man was tired of climbing up on the pickup wheel to reach tools. Using mostly scrap parts, he built a prototype that brings the toolbox to the back of the truck and tilts it for easy access.

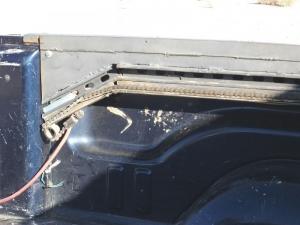

The box moves on four 1 1/4-in. wheel bearing rollers on rails along the top of the pickup box. The rail is positioned so the toolbox clears the wheel wells and stops at a handy angle to reach inside.

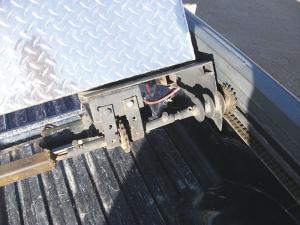

The box is powered by bicycle sprockets mounted on a shaft that’s driven by an electric winch. The sprockets “walk” along lengths of chain mounted permanently on the rails. A wired handheld remote is used to toggle the toolbox forward and backward.
Tijerina patented the idea and would like to find a manufacturer. It could be refined with smaller gears and operated from inside the cab. He believes there would be a good market for it.
“You can also use it like a locking cargo box. Ladies who have trucks could use it for shopping,” Tijerina says.
A video of the toolbox in action can be seen at www.farmshow.com.
Contact: FARM SHOW Followup, Raul Tijerina, 41936 W. Indian School Rd., Tonopah, Ariz. 85354 (ph 623 393-0326; tijerina372@aol.com).
