3-Row Planter Built "On The Cheap"

When Gerald Stutzman of Hardinsburg, Ind., moved from the city to a 40-acre farm, he didn’t have a planter. So, he built one out of a 4-wheel truck dolly, a mailbox, cultivator shanks, a rake, and some metal pipes. He pulls the unusual-looking rig behind his Ford 8N tractor.
  “At the time I was learning on-the-go and didn’t know what was on the market or what I really needed. All I knew was that I didn’t want to plant by hand,” says Stutzman.

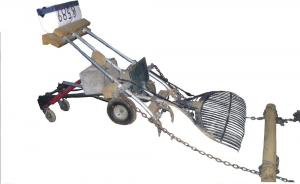

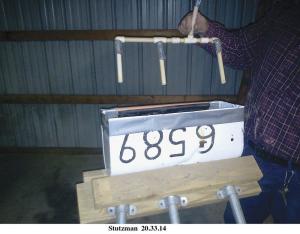

  The planter rides on a 4-wheeled truck dolly with three 1-in. dia. metal pipes attached to it at an angle. The pipes are spaced 8 in. apart. A cultivator shank is clamped to the bottom of each pipe while the upper end extends a short distance into the mailbox. He made seed tube “stoppers” out of a set of three 4-in. long, 1/2-in. dia. pvc pipes mounted on a crosspipe with a center-mounted handle. All the pipes have fittings on them that fit snugly into the seed tubes.

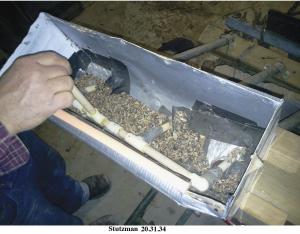

  To plant Stutzman reaches back as he drives, grabs the handle, and moves it up and down to force the seed stoppers in and out of the 1-in. dia. pipes. As the stoppers are raised, the seeds fall around the fittings and into the 1-in. dia. pipes. Seed falls out the pipes and into the trenches made by the cultivator shanks. To stop the flow of seed he shoves the stoppers all the way in.
  “It’s not really a precise seed delivery system, but it works as long as I keep moving,” says Stutzman. “I used mostly junked-out materials so I spent very little to build it.
  “I used it last year to plant 5 acres of corn, 3 acres of oats and 2 acres of sunflowers. The smaller the seed, the faster I have to move the handle up and down as I drive. Oat seeds are small so they come out very fast. With larger seeds such as sunflowers, I don’t have to move the handle up and down as much, and I can drive faster.
  “I made a place to store bags of seed on the tractor, and when I run out of seed I just pour more in the mailbox.   I attached an ordinary garden rake behind the pipes to cover the seed and drag a smooth log behind to cover the seed. A cement block wired down to the dolly adds weight and also helps seed tubes in the ground.”
  A pair of lightweight chains are used to hook the dolly onto Stutzman’s tractor. He attached homemade metal brackets on front of the dolly and uses muffler clamps to attach the dolly to the tractor 3-pt.’s lower lift arms.
  “During the winter I set the planter on a floor creeper so I can move it around inside my barn,” notes Stutzman.
  Contact: FARM SHOW Followup, Gerald Stutzman, 6589 E. County Rd. 660 S., Hardinsburg, Ind. 47125 (ph 812 472-3847; cracker070806@aol.com).
