Does Compost Heat Really Work?

2013 - Volume #37, Issue #1, Page #27

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

Researcher Sam Gorton is confident composting for heat can pay off big. The University of Vermont graduate student has been evaluating compost heat systems and currently has two systems going in Vermont.

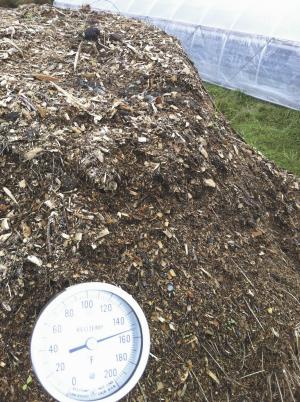

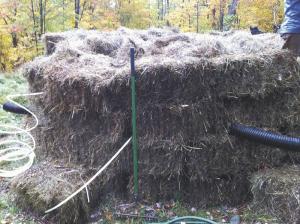

  “Both are insulated with hay bales and set up to heat greenhouses,” says Gorton. “Both are outfitted to measure water temperature and compost temperature at different depths. Based on my research, a realistic recovery estimate is 1,000 btu’s per hour per ton of active compost for up to 6 months.”

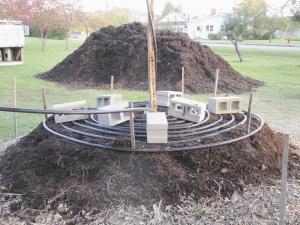

  Gorton starts by laying down a foundation of wood chips for the compost mound. He then coils rigid plastic water pipe under 6 to 18-in. thick layers of compost. Once the pile is completed, a mixture of glycol/water or straight water is pumped through the pipes, collecting heat from the compost.
  “The heated water can be pumped to an in-floor radiant heat system, fluid-to-air radiator panel or heat exchange system,” says Gorton.
  A proper compost mix is key to maximum heat production, advises Gorton. This includes the carbon-to-nitrogen ratio, moisture content, relative biodegradability, porosity (needed for air flow) and the physical shape.
  “If you’re interested in composting, the heat can be a free byproduct and potentially displace fossil fuels,” says Gorton. “Before it can be used, the compost will likely have to be turned again and stabilized or cured after heat recovery is finished. Unfinished, compost can burn crops.”
  Gorton is coordinating his research efforts with Highfields Center for Composting, a Vermont non-profit. “They do compost consulting and offer free information on their website,” he says. “We are trying to create a network of folks working on the concept.”
  He also recommends visiting the website for Agrilab Technologies (www.agrilabtech.com). Agrilab has installed an on-farm, air-based heat recovery system for a large dairy.
  Other good sources include Cornell University’s composting website and the On-Farm Composting Handbook from the Northeast Regional Agricultural Engineering Service.
  Contact: FARM SHOW Followup, Sam Gorton, c/o R3 Fusion, Inc, 405 Jordan Rd., Troy, N.Y. 12180 (ph 518 496-4252; gortonsm@gmail.com) or Highfields Center for Composting, Attn: James McSweeney, P.O. Box 503, Hardwick, Vt. 05843 (ph 802 472-5138, ext. 201; james@highfieldscomposting.org; www.highfieldscomposting.org).
