Homemade Threaded Rod Assembly For Snowblowers
 ✖  |

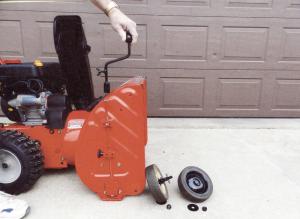

My snowblower kept picking up rocks on gravel driveways and damaging the auger. Instead of unbolting the shoes, moving them down, and tightening them again, I added this homemade threaded rod assembly. It lets me turn a crank to raise and lower the shoes automatically. A 9/16-in. socket is welded to the crank and fits over a nut welded on top of a 3/8-in. threaded redi rod. The rod runs down through blocks made from 1-in. sq. bar stock that I bolted onto one side of the blower housing. I had to do some cutting, drilling, tapping and welding to make the various parts.
It works great and saves a lot of time. I also bolted a pair of wheels onto the blower to keep from wearing the scraper bar. (Jim Rotter, P.O. Box 16, Walford, Iowa 52351 ph 319 846-2988)
