"Made-It-Myself" Rig Sidedresses Crops

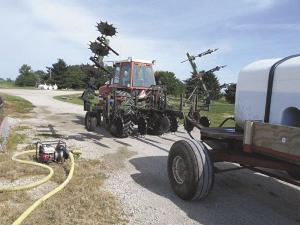

“I built my own fertilizer side dress machine last winter to gain the benefits of split-applying nitrogen to my corn,” says Streator, Illinois farmer Larry Tombaugh. “The 12-row machine has parts from a row-crop cultivator, re-manufactured spike wheel anhydrous applicators, and a John Blue ground drive pump.” Liquid is supplied to the toolbar from a 1,600-gal. tank that’s mounted on an E-Z Trail all-steer wagon pulled behind the toolbar.

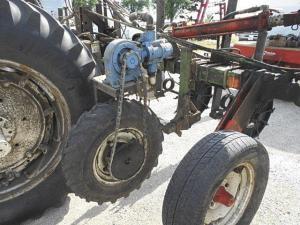

Tombaugh and two of his employees started the project by dismantling the cultivator, then adding a hitch and building new brackets on the front for two gauge wheels. They built a complex bracket to mount a John Blue pump and its drive wheel to the front of the bar. The wheel has a large sprocket which connects to a smaller sprocket on the pump with #30 roller chain.

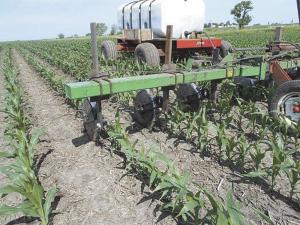

Tombaugh and his crew then attached the spike-wheel applicators to the tool bar with U-bolts. They’re mounted 30 in. on center so they can apply liquid about 8 in. to the side of the growing crop. In 2013, Tombaugh used the rig to sidedress 20 gal. of 32 percent nitrogen per acre.
Tombaugh says he built the machine because he had been applying 200 lbs. of anhydrous per acre with a stabilizer, but he knows that heavy rains early in the growing season may have washed away nearly 40 percent of that full application. “After 20 years of farming I’ve learned it’s important to apply some fertilizer in the fall, some in the spring, some at planting and some as a side dress when corn needs it the most during early to mid-summer,” Tombaugh says. His machine will apply up to 38 gal. an acre traveling 5 to 5 1/2 mph, although he doesn’t anticipate using that high of a rate.
“The spike wheel injectors put the nitrogen about 1 to 2 in. into the ground and 8 in. away from the growing plants” says Tombaugh, “and that’s ideal placement. The roots are just beginning to take off and I’m putting the nutrients where the roots have immediate access.” Tombaugh says the spike wheels inject the liquid into the ground when the wheels rotate 7 degrees from dead center. He’s also excited about using Soil Biotics XL with his nitrogen, which has shown excellent results in several trials around the country. “Last year irrigated corn had 8 yields over 235 bu. per acre and 2 over 250 bu. per acre.”
In the fall, Tombaugh hopes to use the same rig to apply 10 to 12 gal. of 3-18-18 along with another shot of Soil Biotics and stay completely away from anhydrous. “I know that anhydrous isn’t good for soil microbes and earthworms, so I think this new setup of mine with split fertilizer applications will show big benefits.” Tombaugh spent only $200 for the used tool bar and, together with the remanufactured spike wheels, the used pump and new liquid cart figures he’s got a custom applicator for about a third the cost of buying a new one.
Contact: FARM SHOW Followup, Larry Tombaugh, 32815 N. 200 E. Rd., Streator, Ill. 61364 (ph 815 673-1449; www.tomkatroofing.com).
