Inexpensive Parts Washer

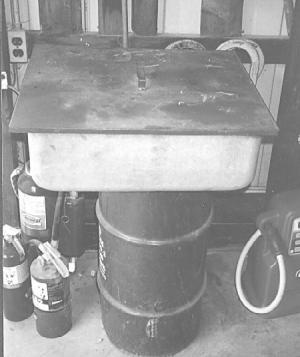

Michael Casson, Chandler, Ind.: "I used an old stainless steel laundry room sink, an old cabinet door, and a 30-gal. steel barrel to make an inexpensive parts washer. The barrel contains cleaning fluid. A pump mounted on an angle iron frame bolted to the bottom of the sink pumps fluid through a hose up into the sink. The cabinet door is used as a lid and is hinged on back so I can flip it up or down. The angle iron frame keeps the sink centered over the barrel. The 2 by 3-ft. sink is big enough to wash engine heads and blocks. A screen in the sink drain filters out big pieces of dirt. Dirty fluid drains out the bottom of the sink and back into the barrel. I change the fluid twice a year.

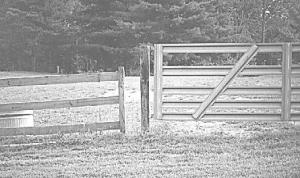

"I got tired of having to open and close gates all the time on my horse corral so I came up with a simple solution. I left an opening by the gate that's just wide enough so that I can turn sideways and slip through. My horses are too big to go through it."
Click here to download page story appeared in.
Click here to read entire issue
Inexpensive Parts Washer CLEANING EQUIPMENT Cleaning Equipment 20-3-31 Michael Casson, Chandler, Ind.: "I used an old stainless steel laundry room sink, an old cabinet door, and a 30-gal. steel barrel to make an inexpensive parts washer. The barrel contains cleaning fluid. A pump mounted on an angle iron frame bolted to the bottom of the sink pumps fluid through a hose up into the sink. The cabinet door is used as a lid and is hinged on back so I can flip it up or down. The angle iron frame keeps the sink centered over the barrel. The 2 by 3-ft. sink is big enough to wash engine heads and blocks. A screen in the sink drain filters out big pieces of dirt. Dirty fluid drains out the bottom of the sink and back into the barrel. I change the fluid twice a year.
"I got tired of having to open and close gates all the time on my horse corral so I came up with a simple solution. I left an opening by the gate that's just wide enough so that I can turn sideways and slip through. My horses are too big to go through it."
