See-Through Cab Keeps Kubota Warm

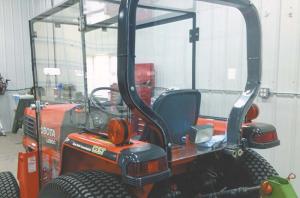

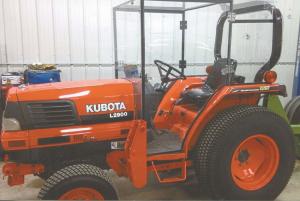

Using only square tubing and plexiglass, Laine Blackburn built an all-glass cab for his 1995 Kubota tractor that keeps him cozy when he plows snow in winter. He has a propane heater inside, but rarely uses it.
“I got tired of staying out in the cold so I thought I’d make something neat. Now I’m able to
..........![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book
See-Through Cab Keeps Kubota Warm TRACTORS Cabs Using only square tubing and plexiglass Laine Blackburn built an all-glass cab for his 1995 Kubota tractor that keeps him cozy when he plows snow in winter He has a propane heater inside but rarely uses it
“I got tired of staying out in the cold so I thought I’d make something neat Now I’m able to plow snow on cold windy days in my shirt sleeves ” says Blackburn
“I found an aftermarket cab that would work but it cost about $1 500 and required tapping into the tractor’s cooling system in order to provide heat Also the cab came as a solid unit that would be harder to remove and would take up more storage space ”
He bought the plexiglass in 4 by 8 sheets at Menards for about $800 He used a Fein multi-tool with an oscillating blade to cut everything to fit He used 1-in wide by ¼-in thick steel tubing to build 4 sections for the frame The back section fits on the rollbar with a length of screwed-on flat bar stock The rest of the frame is bolted to the fenders and to the front part of the operator’s platform with L-shaped brackets
“I didn’t have to drill into the fenders at all Instead I removed the grab handles on them and used the existing holes to bolt the frame on ” says Blackburn “I did drill into the operator’s platform but the brackets are hidden under a rubber mat I had to be careful when building it not to scratch the plexiglass panels I applied weather stripping to the bottom of the cab where it meets the fenders ”
Blackburn only uses the cab in the winter when plowing snow The rest of the time he stores the cab sections inside a building
Contact: FARM SHOW Followup Laine Blackburn 1519 Pump Factory Rd Dixon Ill 61021 ph 815 973-1943
