Hydraulic-Operated Top Link
 ✖  |
Michael Myers found that the manually-controlled, screw-type top link on his tractor’s 3-pt. hitch was difficult to adjust, especially when the 3-pt. was carrying a lot of weight. He didn’t want to spend the money for a commercial hydraulic-operated top link, so he made his own using a standard cylinder.

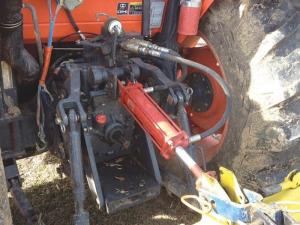

Myers bought the 2 by 8-in. cylinder at Tractor Supply Co. for $92. He cut a pair of brackets out of heavy plate steel that pin to each end of the cylinder. The brackets in turn pin onto the tractor and 3-pt. hitch.
“I use it with a quick-tach hitch on my Kubota tractor, which has about 70 hp,” says Myers. “One end of the cylinder is threaded which allows me to adjust the yoke up or down. I welded a ball hitch on top of the quick hitch so I can use the tractor to pull my gooseneck trailer. I bought 3/8-in. dia. hydraulic hoses and fittings. My total cost was about $100.”
Contact: FARM SHOW Followup, Michael Myers, 2942 CR 474, Kirbyville, Texas 75956 (ph 409 423-4142).
