“No Mess” Bulk Oil Dispensing Rack

2015 - Volume #39, Issue #2, Page #38

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

One of the handiest systems we’ve seen for storing and dispensing bulk lubricants is this one set up by B.J. Gingerich of Tremont, Ill.
    “It’s convenient because we don’t have drums sitting all over our shop floor and making a mess,” says Gingerich, who is the shop manager for a small, family-owned company in the crane rental business. “We rent out about 50 cranes of different brands and models and use a lot of different oils, solvents, and antifreezes which we buy in 55-gal. drums,” he says. “I came up with the idea because I was tired of the constant mess caused by all the drums and pumps.”
    So he set up a big gravity-fed, bulk oil dispensing pallet rack system. Several 55-gal. drums set on the top 3 racks, each with a different type of oil, while 14 rectangular 30-gal. clear plastic tanks set on the lower 2 racks in a staggered fashion. Oil gravity flows from the drums into the tanks, and from there through hoses fitted with ball valves. A big 250-gal. overflow containment tank on the floor under the tanks catches any spillage and has a metal screen on top of it to place buckets and drain pans.
     Once a 55-gal. drum goes empty, Gingerich uses a forklift to replace it with a full one. If a full drum isn’t immediately available, he can use the 30-gal. tanks as a reserve and continue dispensing oil out of them.
    “It lets us continue to bulk purchase oil and lubricants in 55-gal. drums, but also provides a ‘reserve’ system of 30-gal. barrels whenever the drums go empty,” says Gingerich. “Using the forklift I can replace an empty drum in just 10 min. The bulk oil dispensing racks I found on the market were expensive and required a lot of pumping to refill the drums, which is a messy job. With my gravity-flow system there’s no need to pump anything.”

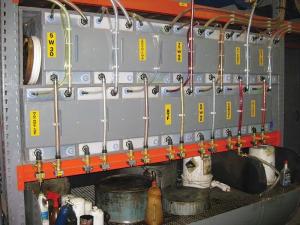

    The clear plastic tanks were originally designed for use as water tanks in RV’s, and because they’re rectangular they can be stacked next to each other without taking up much space. “The tanks are made of thin plastic, so whenever they’re filled with liquid they tend to expand,” says Gingerich.
    To keep the tanks from bulging out too much, he sets each tank inside a home-built, 3-sided plywood enclosure. A 1-in. thick by 12-in. wide plywood strip is bolted onto the racks in front of the 2 rows of tanks, with adhesive labels marking the contents of each tank. Gingerich also cut long, narrow slots into the plywood next to each tank to serve as sight gauges.
    He made the overflow tank by cutting up a 500-gal. fuel tank. “When the overflow tank gets full, we pump the waste oil into a big 275-gal. plastic tank that’s used to heat our shop,” notes Gingerich.
      Contact: FARM SHOW Followup, B.J. Gingerich, 26770 Allentown Rd., Tremont, Ill. 61568 (ph 309 208-8882; bj@gingerichcrane.com).
