'Poor Man’s’ Brake Press
 ✖  |

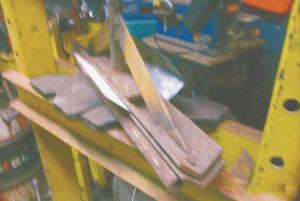

Jim Weaver, Fairview, Mich.: “I was designing small equipment for a company and needed a press that could bend metal with nice looking corners, so I came up with this ‘poor man’s’ brake press that’s made out of 2 lengths of 1 1/2-in. angle iron.
“I welded 2 pieces of pipe along the bottom of one angle iron with the ‘V’ part of the angle iron facing up. Then I welded a short steel plate into the open bottom of another angle iron and welded a 1-in. dia. vertical steel ‘push rod’ onto it. I also welded on a pair of diagonal strap iron braces.
“To bend the metal I just place one angle iron on top of the other. The strap iron braces reinforce both ends of the top angle iron so it doesn’t bow up from the pressure.”
