Turnbuckle Clevis Lets Him Adjust Both Petals On HIs Allis Chalmers B Tractor
 ✖  |

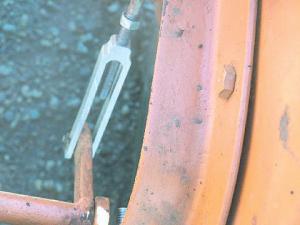

Donald Jaster, Bruce, Wis.: “I needed an adjustable clevis that would let me adjust both brake pedals on my Allis Chalmers B tractor. I don’t have an Allis dealer close by for parts, so I bought an aluminum turnbuckle with an open frame and converted it into a big clevis. I cut the turnbuckle off on the left thread end, and then I cut off the tractor’s left brake link and used a die to make a 5/16 thread. The brake link is slightly bigger than 5/16 so I had to grind it down some to allow the die to work. I paid about $3 for the turnbuckle.”
Click here to download page story appeared in.
Click here to read entire issue
Turnbuckle Clevis Lets Him Adjust Both Petals On HIs Allis Chalmers B Tractor FARM SHOP Handy Hints Donald Jaster Bruce Wis : “I needed an adjustable clevis that would let me adjust both brake pedals on my Allis Chalmers B tractor I don’t have an Allis dealer close by for parts so I bought an aluminum turnbuckle with an open frame and converted it into a big clevis I cut the turnbuckle off on the left thread end and then I cut off the tractor’s left brake link and used a die to make a 5/16 thread The brake link is slightly bigger than 5/16 so I had to grind it down some to allow the die to work I paid about $3 for the turnbuckle ”
