They’re Making A Modernized “G”-Style Tractor

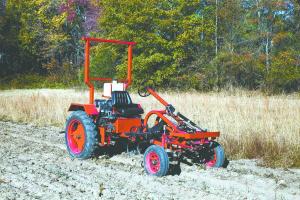

Oggun Tractor has taken the old Allis Chalmers G and updated it with an independent hydraulic drive, steering, and lift. The Oggun features an extended frame and new attachments, but it's the hydraulics that really add versatility.
“The independent hydraulic drive gives us zero-turn capability simply by stepping on one of the brake pedals,” says Locky Catron, Oggun. “Simple hydraulic systems also allow us to use multiple vendors and no proprietary parts, to get the lowest cost, yet highest quality.”
The Oggun, powered by a 19-hp. Honda gas engine, is expected to be available in the summer of 2017. At 123 in., it weighs only 1,500 lbs. for reduced compaction. Front and back wheel spacing can be adjusted in 2-in. increments from 36 to 60 in.
Hydraulic braking means no brake linings or pads to wear out or need replacing. Any parts that need to be replaced or repaired can be sourced locally.
The goal of the company, which was started by two retired software creators, is to use Open Source Manufacturing (OSM) to provide small farmers with economical, efficient equipment. OSM uses a building block approach of off-the-shelf parts as a way to drive down costs. Equipment is designed to be simple, rugged, and maintainable in the field or local shop.
“The added length and the belly-hung implements make the Oggun different from the G,” says Catron. “It's so important for cultivating. You can see the row and see what you are doing.”

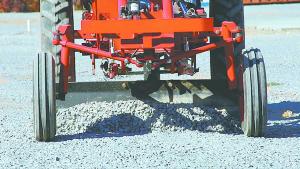

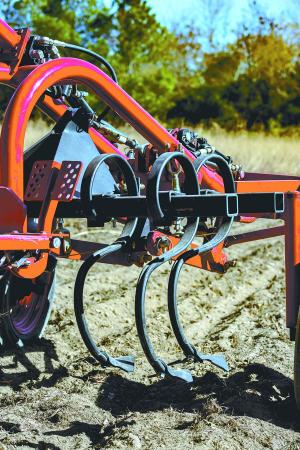

Belly-hung and rear-mounted implements available for the Oggun include plows, cultivators, a hiller/bedder, a single-row planter, a grading blade, and more. Implement prices range from $225 for a rear cultivator or hiller/bedder to $760 for a single-row planter. An add-on pto kit is available, as is a ROPS and seat belt, although they're not required for a tractor under 20 hp.
With its rear lift capability, implements from other manufacturers can also be used. “We made the 3-pt. hitch Cat. I versus Cat. 0, as Cat. I implements are easier to find,” says Catron.
Although an assembly plant in Alabama will serve the U.S. market, the company is planning to establish additional plants around the world.
Contact: FARM SHOW Followup, Oggun, 3400 County Rd. 10, Paint Rock, Alabama. 35764 (ph 256-244-5939; or 800-730-4847; www.thinkoggun.com).
