Adjustable Combine Grain Spout
 ✖  |

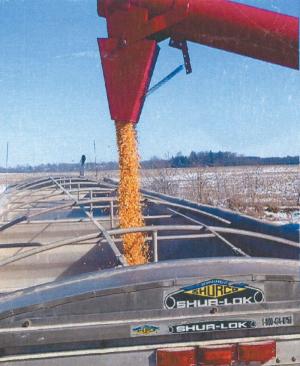

“Our new Target Spout directs grain flow from any conventional auger in a concentrated area that makes it easy to load trucks and wagons without spilling, even if the spout isn’t positioned directly over the center of the truck or wagon. You can easily adjust the grain flow forward or backward just by cranking a lever,” says Steve Mast, Mast Productions, Inc., Payson, Ill.
The triangle-shaped metal spout comes with a universal bolt-on mounting kit and is designed to fit most 10 and 13-in. dia. augers. A hand-operated winch at the lower end of the auger is connected by cable to a metal bracket that supports a long spring that’s attached to the spout. Pulling on the winch’s crank extends the spout forward about 2 ft. Let go of the crank and the spring retracts to pull the spout back to its original “straight down” position.
“Conventional spouts splatter the grain in an 18-in. wide pattern whereas the Target Spout confines the grain to a narrow 4-in. wide area. And unlike with conventional auger spouts, you can aim the spout wherever it needs to be. As a result, it doesn’t matter if the spout isn’t located directly over the center of the trailer,” says Mast.
Contact: FARM SHOW Followup, Mast Productions, Inc., Payson, Ill. 62360 (ph 217 656-3911 or cell ph 217 779-8006; mastpro@adams.net)
