Automatic Outdoor Cat Feeder
Herbie Fromelt, Royalton, Minn., came up with an automatic outdoor cat feeder that allows his family to leave the family’s 3 cats for days, and eliminates the need to feed the cats when they’re home. It plugs into an electronic timer connected to a small electric motor.
“It’s raccoon-proof. They can’t get food out of it and they can’t damage it,” says Fromelt. “I built it because I couldn’t find an outdoor model with enough capacity for 3 cats for several days. It holds enough food for one feeding a day for almost 3 weeks. When the cats hear the motor start up, they come running.”

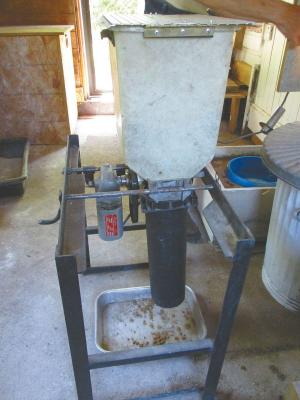

The food is stored in a discarded fiberglass insecticide hopper off an old corn planter, which mounts on an angle iron stand. An electric motor shaft-drives an impeller at the bottom of the hopper, allowing the food to drop into an attached 20-in. long, 4-in. dia. plastic tube off a Toro leaf blower-vac. The food falls into a tray on the floor.
The electronic timer releases the food at the same time every day. Fromelt built a wood box for the timer and installed a 15-watt light bulb inside it to keep the timer from freezing. “I lined the inside of the box with metal to make it fire-proof,” he says.
Contact: FARM SHOW Followup, Herbie Fromelt, 5943 Imperial Rd., Royalton, Minn. 56373 (ph 320 584-8029).
Click here to download page story appeared in.
Click here to read entire issue
Automatic Outdoor Cat Feeder LIVESTOCK Feeding Equipment Herbie Fromelt Royalton Minn came up with an automatic outdoor cat feeder that allows his family to leave the family’s 3 cats for days and eliminates the need to feed the cats when they’re home It plugs into an electronic timer connected to a small electric motor “It’s raccoon-proof They can’t get food out of it and they can’t damage it ” says Fromelt “I built it because I couldn’t find an outdoor model with enough capacity for 3 cats for several days It holds enough food for one feeding a day for almost 3 weeks When the cats hear the motor start up they come running ” The food is stored in a discarded fiberglass insecticide hopper off an old corn planter which mounts on an angle iron stand An electric motor shaft-drives an impeller at the bottom of the hopper allowing the food to drop into an attached 20-in long 4-in dia plastic tube off a Toro leaf blower-vac The food falls into a tray on the floor The electronic timer releases the food at the same time every day Fromelt built a wood box for the timer and installed a 15-watt light bulb inside it to keep the timer from freezing “I lined the inside of the box with metal to make it fire-proof ” he says Contact: FARM SHOW Followup Herbie Fromelt 5943 Imperial Rd Royalton Minn 56373 ph 320 584-8029
