Truck Chassis Converted To Gravity Box

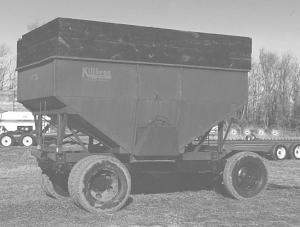

We converted a 1952 truck chassis into a heavy-duty trailer fitted with a gravity box. The cab and motor were removed and the frame cut off at the front cross member. The tongue is made out of 2-in. dia. pipe that attaches to heavy 2 by 12-in. flat irons that extend out from the front axle. The tongue pivots on a pin.
..........![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book
Truck Chassis Converted To Gravity Box GRAIN HANDLING Wagons (63E) 20-3-35 We converted a 1952 truck chassis into a heavy-duty trailer fitted with a gravity box. The cab and motor were removed and the frame cut off at the front cross member. The tongue is made out of 2-in. dia. pipe that attaches to heavy 2 by 12-in. flat irons that extend out from the front axle. The tongue pivots on a pin. A piece of flat iron connects the tongue to a tie rod so that the wheels turn in the direction of travel. We added two 2 by 10 planks to the top of the Killbros gravity box to increase capacity. (Peter Bult, 37428 S.D. Hwy 34, Wessington Springs, S.Dak. 57382)
