Hydraulic Dump Trailer Built From New Holland Bale Wagon

2018 - Volume #42, Issue #6, Page #24

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

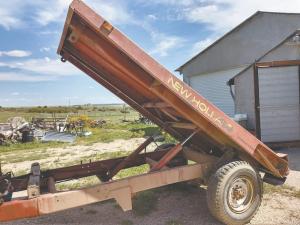

“I turned an old New Holland pull-type, small square bale wagon into a hydraulic-operated dump bed. What’s great about it is that it dumps hydraulically, and I can pull it behind my pickup,” says Eddie Angelovich, Rye, Colo.

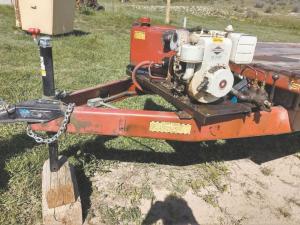

    The dump bed measures 10 ft. long by 6 ft. wide and has a short tongue with a ball hitch on the front, allowing Angelovich to pull the dump bed with his pickup. The wagon’s original hydraulic cylinders are used to raise and lower the bed. Power to operate the cylinders is provided by an 8-hp. Briggs and Stratton engine off an old grain auger, which operates a 2-stage hydraulic pump.
“I built it last summer and find that it saves a lot of time and labor,” says Angelovich. “I already had the wagon. The bale-loading and stacking parts were worn out, but the bed was still in good shape. My only cost was for the pump. Everything else, including the hydraulic reservoir for the pump, is off the wagon.
    “I use it to haul big square bales and to haul scrap iron to a local salvage yard. I recently retired, and after many years of farming have a lot of junk to clear out. I used a pickup to haul the material to the salvage yard, but then I had to unload by hand.”
    Angelovich cut the frame to leave just the back part of the bed. He made a 5-ft. long, A-shaped tongue by cutting a hole near the outer end of each frame rail and using a large thread-all bolt and two nuts to pull the ends toward each other so he could weld them together.
    The wagon floor angled down slightly toward the back, but he wanted a level bed. So, he welded a length of channel iron onto the back end of the frame to make a new mount for the bed’s pivot point. It raised the back end of the bed by 4 in. He also moved the bed to the rear about 1 in. so the hydraulic cylinders wouldn't bottom out. He also welded a length of 4-in. box tubing across the front of the frame to give the bed a place to rest when it comes down.
    “The same idea would work with an electric over hydraulic system for use with a tractor, and sideboards could be added to the bed depending on what you want to use the trailer for,” notes Angelovich.
    Contact: FARM SHOW Followup, Eddie Angelovich, 6985 Davis Rd., Rye, Colo. 81069 (ph 719-569-1715; eangelovich@live.com).
