Quick-Tach Post Hole Auger
Dale McLaen took the hassle out of working with his bucket-mounted post hole auger by adding a quick-tach plate to replace the clamp with pinch bolts that fastened to the front of the loader bucket.
“The auger head was a miserable, finger pincher to mount, and as you moved around, you had to keep the bucket
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book

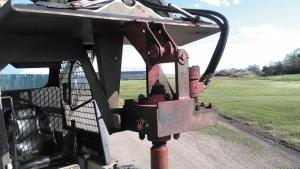

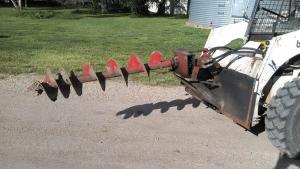

Quick-Tach Post Hole Auger AUGERS Dale McLaen took the hassle out of working with his bucket-mounted post hole auger by adding a quick-tach plate to replace the clamp with pinch bolts that fastened to the front of the loader bucket “The auger head was a miserable finger pincher to mount and as you moved around you had to keep the bucket high to clear the ground ” recalls McLaen “It hung like a plumb bob and you couldn’t tip it forward for cleaning ” McLaen fabricated a new mounting system welded to a quick-tach plate for his skid steer The new mount retained the auger head’s bracket that allows it to pivot forward and back and side-to-side However he also added a saddle made from 1/4-in steel plate just to the rear of the auger head “When I tilt the mounting plate vertical the auger head rests in the saddle and the auger points straight out and parallel with the ground ” says McLaen “It’s easy to move around and easy to clean in that position If close to the ground it’s also handy for stepping on and off the skid steer ” Contact: FARM SHOW Followup Dale McLaen McLaen’s Service 13756 Hwy 11 Rutland N Dak 58067 ph 701 724-6232; mclaen@drtel net
