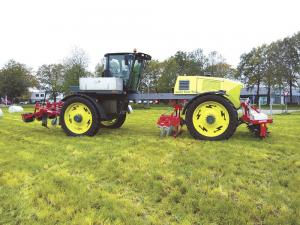

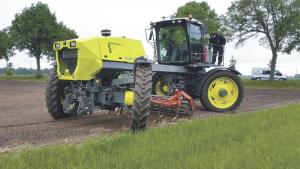

Dutch “Tool Carrier” Tractor Is An Electric/Diesel Hybrid
The new MultiToolTrac, electric/diesel, hybrid tractor adapts to the needs of each farm operation. The 4 electric wheel motors and wheel posts can slide parallel to the ground and can adjust wheel spacing on-the-go. The cab can slide forward or to the rear on the twin toolbar main frame for clear vision of front-mounted or belly-mounted tools.
“The MultiToolTrac design is very modular and therefore flexible and can adjust to any requirement from the user,” says Eelco Osse, CEO, Osse Equipment Manufacturing Group (OEMG), the Dutch manufacturer. “It is basically a 4-wheel driven and steered power train. The frame keeps it together, but it can be shaped as desired. It can be produced with or without a cab, as the fully electric power train can be autonomous.”
The electric power train offers more torque and traction, the latter being enhanced by the tractor’s 5-ton load capacity. Power capacity ranges from four 22 kW batteries to four 44 kW batteries. Working time can be extended thanks to a 6-cylinder, 218 hp. diesel engine powered, on-board generator.
Osse explains that the electric power train delivers more power to implements than the diesel engine would with standard drivetrains.
“It can handle all the standard tools a 218 hp. tractor could, and even larger ones,” says Osse.
The MultiToolTrac name accurately depicts key features. The 18-ft. wheelbase provides stability and plenty of room for a wide array of implements. The 5 positions for attaching tools and implements give lots of versatility. Lift hitch and pto access ahead of the front wheels, behind the front wheels and at the rear of the tractor allow the MultiToolTrac to handle individual or multiple implements in a single pass. Loading platforms at the rear and at the front increase that versatility.
Wheel tracks (gauge) can be adjusted from a transit gauge of 7 ft., 4 in. to field gauges as great as 10 ft., 4 in. This facilitates controlled traffic farming for minimal compaction.
According to Osse, the concept for the MultiToolTrac originated with 7 Dutch farmers. They came to OEMG with a vision of a tractor that would better preserve soil quality and reduce ownership costs. The ability to easily control traffic paths in fields was key to that effort.
OEMG worked with the farmers to develop and test the MultiToolTrac. It is now in its third prototype with plans to start production in November of 2019.
“We have 5 pre-orders with a price range from $257,000 to $390,000, depending on customer requirements,” says Osse.
Customer options on the MultiToolTrac include customizable wheelbase, wheel tracks (including fixed), and ground-free height.
As a build-to-order machine, Osse says the MultiToolTrac is available in all countries. Contact him for details.
Currently the company is working on a slightly smaller version. Plans are to introduce it later this year as an all-electric, autonomous tractor.
“We’ll be introducing it at Agritechnica in Hannover, Germany in November,” says Osse. “It will have a base price around $179,000.”
Contact: FARM SHOW Followup, Osse Equipment Manufacturing Group, Turfkade 13, 7602 PA Almelo, Netherlands (ph 31 546-48 88 00; info@oem-group.com; www.multitooltrac.com; https://oem-group.com/en/blog/multi-tool-trac-innovation-for-even-better-rided-beds/)
