Dryer Takes Moisture Out Of Big Bales Fast

2019 - Volume #43, Issue #5, Page #38

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

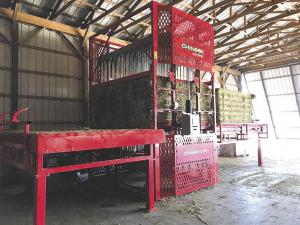

The Chinook Bale Dryer drops moisture in big square bales from 20 percent to 12 percent in as little as 10 min. The modular system injects heat into the bales using a 7,500 cfm fan and one of two heating systems.
“The heat is pushed through 2 banks of perforated metal needles inserted hydraulically in the bale,” says Chris Martin, Chinook co-developer. “One bank is inserted from the bottom and the other from the top for a total of 350 needles feeding hot air into the bale. The controls are automated, so only one person is needed to operate it.”
One heating system uses heat generated by the high-pressure fan (about 50 degrees F) and radiant heat from the diesel engine. It can dry around 5 tons per hour.
The second system is equipped with a 250 kW genset to power both the fan and a supplemental electric heater. It can dry 7 to 8 tons per hour, thanks to a total heat output of 220 to 240 degrees F. It also captures radiant heat.
Martin says the genset system is the most popular choice. The genset and a 21-bale cool down zone are priced at $200,000. Actual operating costs (fuel) are about a quarter cent per pound of hay. Martin estimates costs with labor and capital of about $15 to $20 per ton of hay.
“We put 3 large bales on at a time, and the apron with a pusher bar moves them through as each bale is dried,” explains Martin. “Once all 3 have moved through, the apron and pusher bar automatically return to the starting point.”
Bales move out of the dryer into the cool down zone, where they continue drying. “They lose a couple of additional points of moisture during cool down,” says Martin.
The dryer is separate from the heating systems, which are installed in a shipping container. The heating system can be set up in an adjacent building and takes up an area about 30 ft. long and 12 ft. wide.
“The genset system also provides the operation with a back-up generator when not being used to dry hay,” notes Martin.
The dryer is available in 2 models. The base unit is designed for 3 by 3-ft. square bales and has 20-in. long tubes. A second model is available with 30-in. tubes to penetrate 3 by 4-ft. bales set on edge and is priced at an additional $10,000. It can also accommodate bundles of small square bales made by the Bale Baron.
Chinook Bale Dryers currently are all built to order, with a 6-month delay between order and delivery.
“We have a new manufacturer, so we will pre-build some units,” says Martin. “This has been a work in progress. We started developing it in the winter of 2015. We now have 7 in use in Ontario and 4 in the U.S.”
Contact: FARM SHOW Followup, Chinook Hay Dryer, 7715 Wellington Rd. 8, Alma, Ont. Canada N0B 1A0 (ph 519 580-6710; chris@chinookhay.ca; www.chinookhay.ca).
