Bore Under Roads - Drill Shallow Wells
BorZit lays pipe or wire under roads, driveways, barns or any improvement faster, with less effort, and saves time and money!
It eliminates the drudgery of digging and back-filling and the need to tear up concrete, asphalt or roads. You can also install well points, drill shallow water wells, bore through dams, or develop springs. The system also bores post holes, cleans drain lines, or opens culverts.

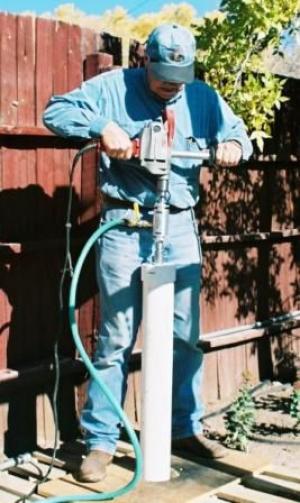

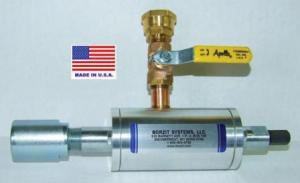

BorZit is powered by a 1/2-in. drill. A water hose is attached to the ball valve, providing water to lubricate the tool and moisten the soil ahead of the bore (not much water is needed.) Cuttings are compressed into the sides of the hole by the rotation of the bit.
The bit is attached to a length of 3/4-in. steel pipe. Add additional lengths of pipe until the bore is completed. On horizontal bores, remove the bit and attach what is to be left in the hole – PVC, poly or galvanized pipe, conduit or cable to the drill pipe. As the drill pipe is pulled out, the pipe or cable to remain is pulled back through the hole. The system can bore a 1-1/4-in., 2-in., 3-in., 5-in. or 7-1/2-in. hole.
BorZit is proudly made in the U.S.A. – manufactured, assembled and shipped directly from the factory. The basic system sells for $239 and is shipped with a 2” bit and carry case. The tool is backed by a full one-year guarantee. If you don’t save time, money and effort with our system, we’ll refund the purchase price.
Click here to download page story appeared in.
Click here to read entire issue
Contact: FARM SHOW Followup, BorZit Systems, 218 E. 3rd Street, P. O. Box 564, Kimball, Neb. 69145. For more information or a free brochure, call 800-803-8738 or e-mail us at info@borzit.com. Order online at www.borzit.com
