“Sewer Pipe” 3-Pt. Tractor Weights

2020 - Volume #44, Issue #4, Page #18

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

Eric Petrevich was looking for an easy way to add rear ballast to his Kioti 25 hp. tractor, without losing use of the 3-pt. hitch or pto. He couldn’t find what he wanted on the market so he decided to build his own out of a big steel pipe.
    “All the ballast boxes I looked at had major flaws,” says Petrevich. “ On some the 3-pt hitch has to be raised when they’re installed, which puts constant strain on all hitch components and also raises the tractor’s center of gravity. Others are so large they’ll scrape the ground as you drive up an incline, or they’re in the way when you have to navigate tight spaces.”

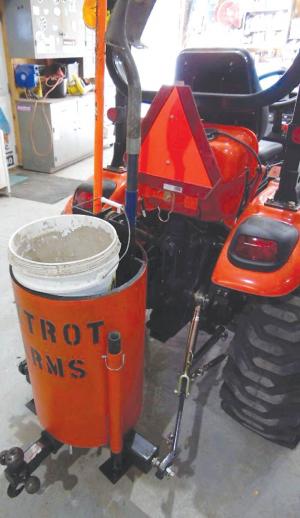

    He started with a 2-ft. long, 16-in. dia.. 3/4-in. thick sewer pipe given to him by a neighbor. He welded the pipe onto a homemade, 3-pt. mounted bracket with an expanded metal floor, as well as a ball hitch on back and 3 welded-on, homemade jacks. Each jack consists of a pipe that rides inside a larger 1 1/2-in. dia. pipe, which Petrevich welded onto the sewer pipe. Both pipes have a series of holes in them, and the jack’s height can be easily adjusted by changing the position of a pin.
    “The sewer pipe weighs just 240 lbs. empty, but the tractor’s rear wheels are filled with ballast so I only needed a little more weight. If I need more weight I can drop rocks or other heavy objects inside the pipe,” says Petrevich.
    “It took about 3 days to build, with most of that time spent painting and sandblasting. All I bought were 2 pins and the ball hitch, which I use to pull trailers. The rest was scrap metal. My total cost was less than $50.”
    By lowering the 3-pt. all the way, the ballast won’t interfere with the pto, says Petrevich. To remove the ballast he just raises the 3-pt. and then drops the jacks to the ground.
    He stores rakes and shovels in 2 vertical pipes that he mounted next to the 3-pt.’s top link. “I leave the ball hitch and a toolbox inside the pipe all the time. There’s room for a 5-gal bucket inside the pipe to carry smaller items,” notes Petrevich.
    Contact: FARM SHOW Followup, Eric Petrevich, Glen Gardner, N.J. (farmshow@megageek.com).
